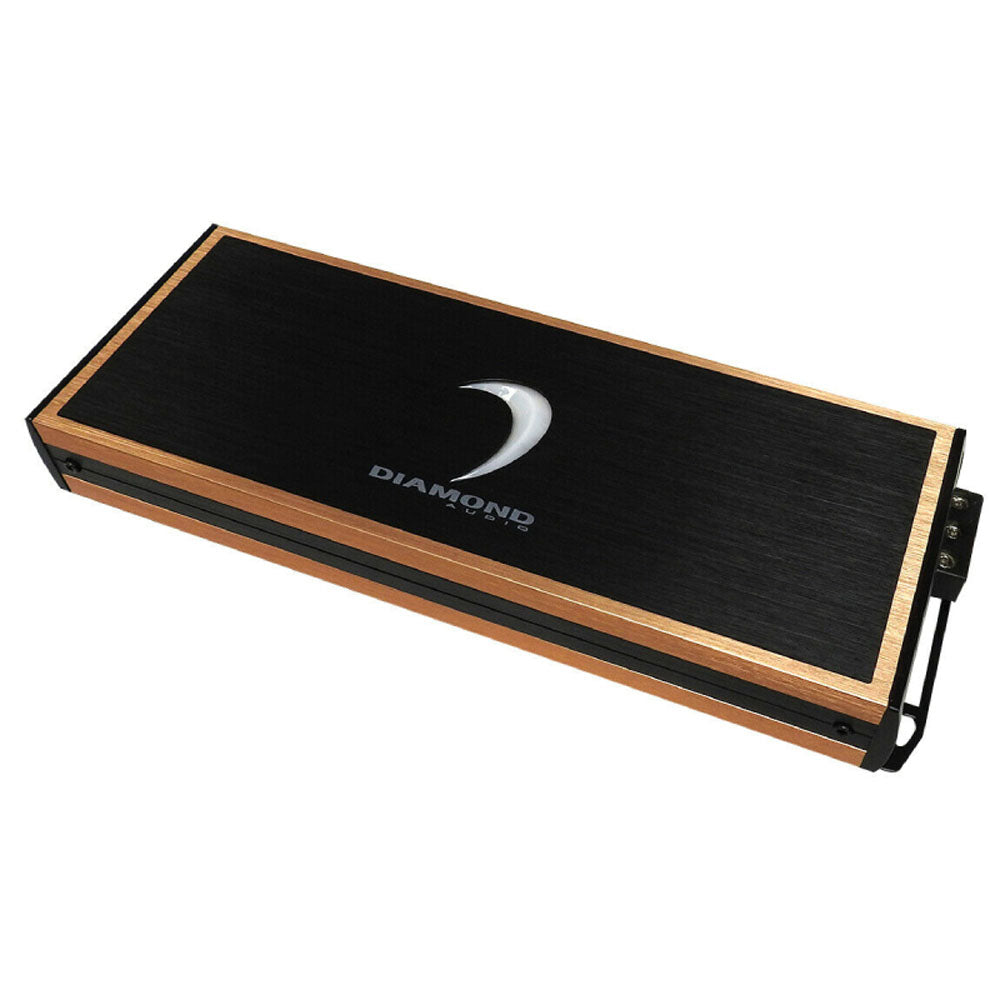

Diamond Audio continues to break new dimensions by introducing the MICRO8U series of amplifiers for 2018. Following in the footsteps of the highly popular MICRO series amplifiers, the big-brother MICRO8U series packs more power and performance! Developed and engineered from the ground up, these new amplifiers deliver more power and are conformal-coated for all-weather applications and outdoor environment use. All MICRO8U models have the same platform and dimension size (excluding the MICRO85U & MICRO88U) for a more aesthetically pleasing installation/fabrication setup to match its subtle yet elegant cosmetics to give it that signature Diamond Audio visage.

Features:

• Diamond Audio Micro Series Class D 2 ohms Stable 5-Channel Amplifier
• RMS Power Rating:
• 4 ohms: 75 watts x 8 channel
• 2 ohms: 100 watts x 8 channel
• Bridged: 200 watts x 4 channel @ 4 ohms
• Total power output: 1000 watts
• Pulse Width Modulated MOSFET power supply
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Input sensitivity:
• Low level: 200mV - 10V volts
• Frequency Response: 10 - 35 Hz
• Total Harmonic Distortion (THD): 0.5%
• Signal to Noise Ratio: -85 dB
• Variable high-pass filter: 40 - 400 Hz, 24 dB/octave
• Variable low-pass filter: 40 - 400 Hz, 24 dB/octave
• Fuse Rating: 40
• 8 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 4" W x 11.44" L x 1.6" H
