45% Off

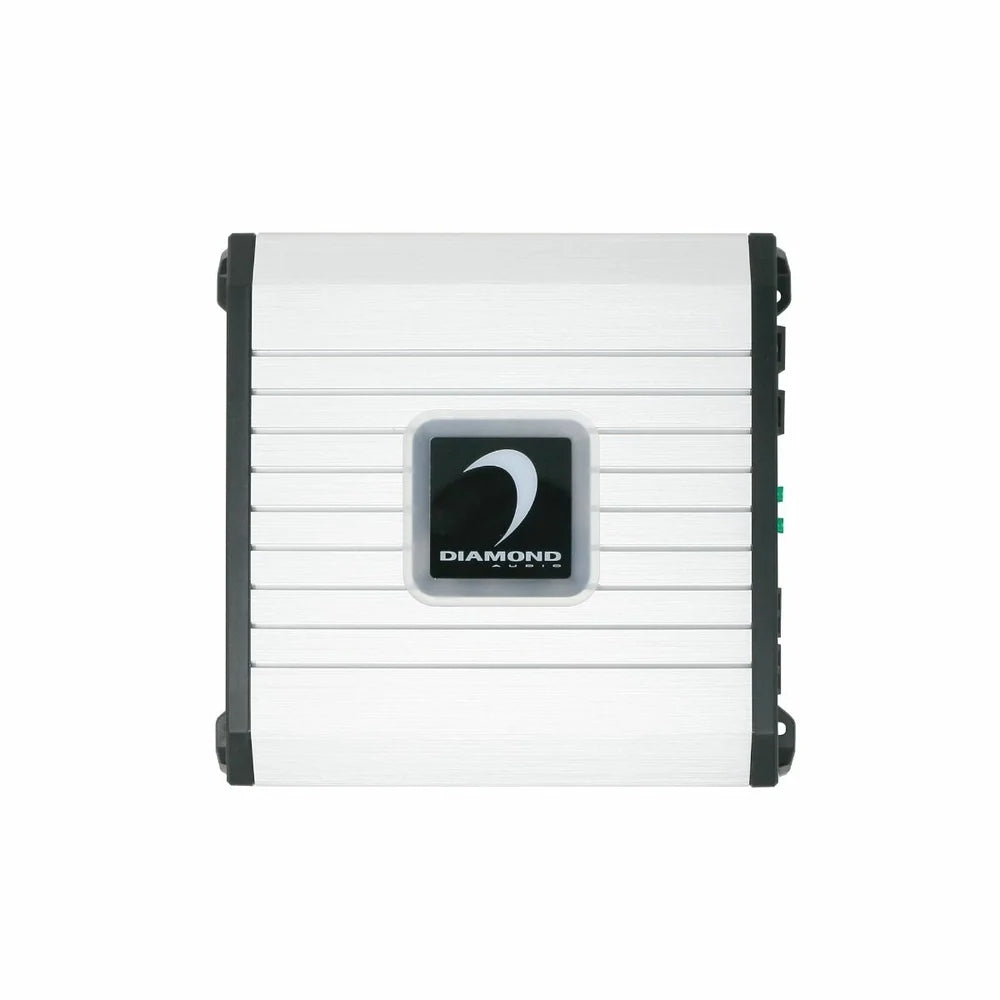

Diamond Audio DMD600.4D 600W RMS 4-Channel Class D Car Amplifier - High Power Full Range Digital Audio System for Cars, Trucks & SUVs | Perfect for Upgrading Your Vehicle Sound System
SKU:
30927045
$164.99
$299.99
45% Off
Delivery & Return: Free shipping on all orders over $50
Delivery Time: 10-15 days international
21 peoples viewing this product right now!
Guranteed safe checkout
Product Description
Features:
- Diamond Audio DMD Series Class D 2 ohms Stable 4-Channel Amplifier
- RMS Power Rating:
- 4 ohms: 150 watts x 4 channel
- 2 ohms: 100 watts x 4 channel
- Bridged, 4 ohms: 320 watts x 2 channel
- Total power output: 600 watts
- Switchable 2CH & 4CH Input Configuration
- Hidden Led Lights under Logo Badge indicate working status:Power/Protection
- Gain Input Sensitivity Clipping Indicators
- Full Range IR Chipset Digital Circuit Design
- DirectFET power Mosfet Output Stage
- Compact Size to easy Installation
- SMD Technology on 4 Layers FR4 PC Board
- Balanced Differential Inputs for Noise-Free Operation Regardless of the Source
- Audio Precision Quality Control Verification
- Input sensitivity:
- Low level: 0.2 - 10 volts
- Frequency Response: 20 - 20000 Hz
- Total Harmonic Distortion (THD): 0.05%
- Signal to Noise Ratio: 90 dB
- Variable low-pass filter: 35 - 350 Hz, 24 dB/octave
- Variable Bass Boost: bass boost at 50 Hz
- Fuse Rating: 120
- 8 AWG gauge power and ground wiring is recommended for installation.
- Dimensions: 6.85" W x 7.6" L x 1.9" H
More
