Features:

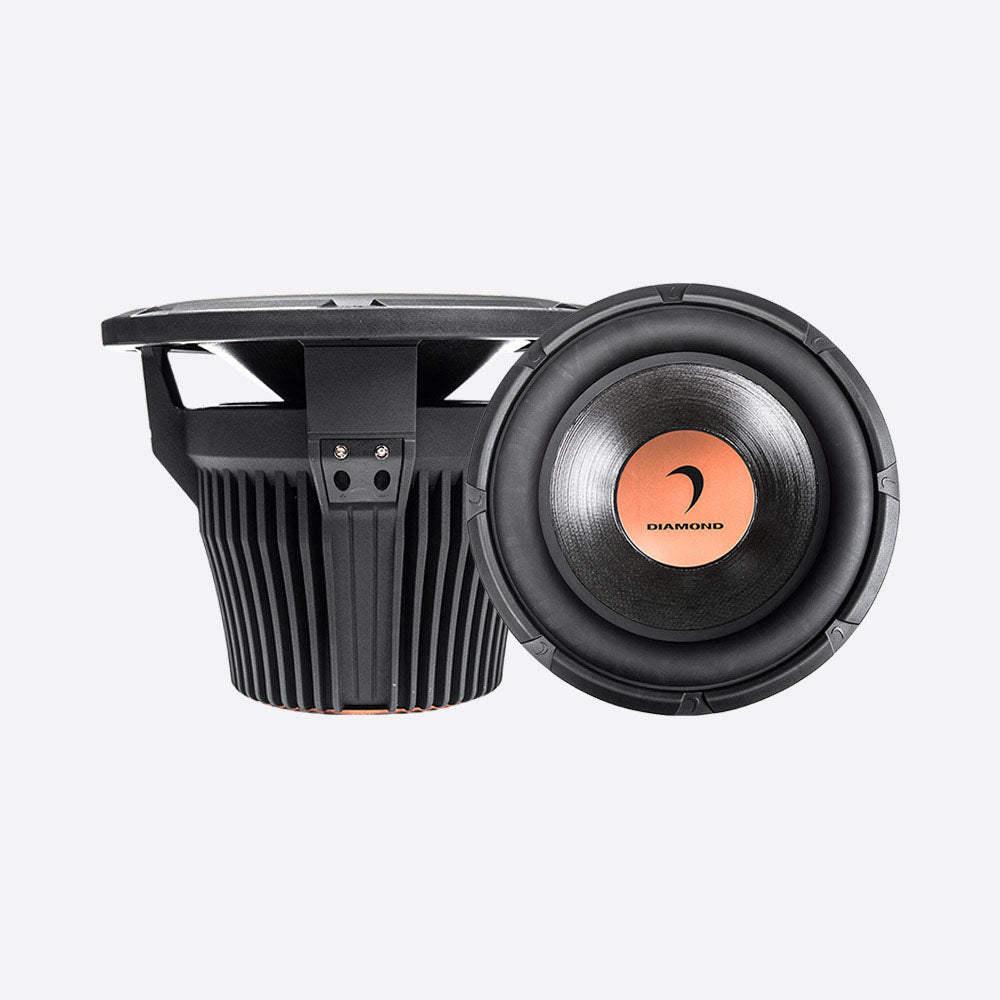

• HEX Pro Series 10" Dual 4 Ohm Subwoofer
• Power Handling:
  • RMS: 700 Watts
  • Peak: 1400 Watts
• Die Cast Aluminum Alloy Basket with Integrated Cooling Fins
• High Strength Honeycomb Cone
• High Power Neodymium Encapsulated Motor Structure
• Klippel DA Optimized Motor and Suspension Symmetry
• Available in Dual 2 ohm and 4 ohm Configurations
• Offered in 10”, 12”, and 15” Sizes
• SPL @ 2.83v: 81.2dB
• Re: 6 Ohms
• Qms: 3
• Qes: 0.68
• Qts: 0.55
• Fs: 27 Hz
• Vas: 20 Hz
• Xmax: 17mm

Specifications:

• Subwoofer Size: 10"
• Nominal Impedance (ohms): 4Ω
• RMS Power Rating: 700W
• Max Power Rating: 1400W
• SPL (db): 81.2
• Z (Ω) [series]: 8
• Re (Ω)[series]: 6.00
• Qms: 3.0
• Qes: 0.68
• Qts: 0.55
• Fs-Free Air Resonance (Hz): 27.0
• Vas (Liter): 20.0
• Sd (cm²): 332
• BL (T*M): 20.2
• Xmax - Inch(mm): 17.0
• Pwr (W) NOM/MAX: 700W/1400W

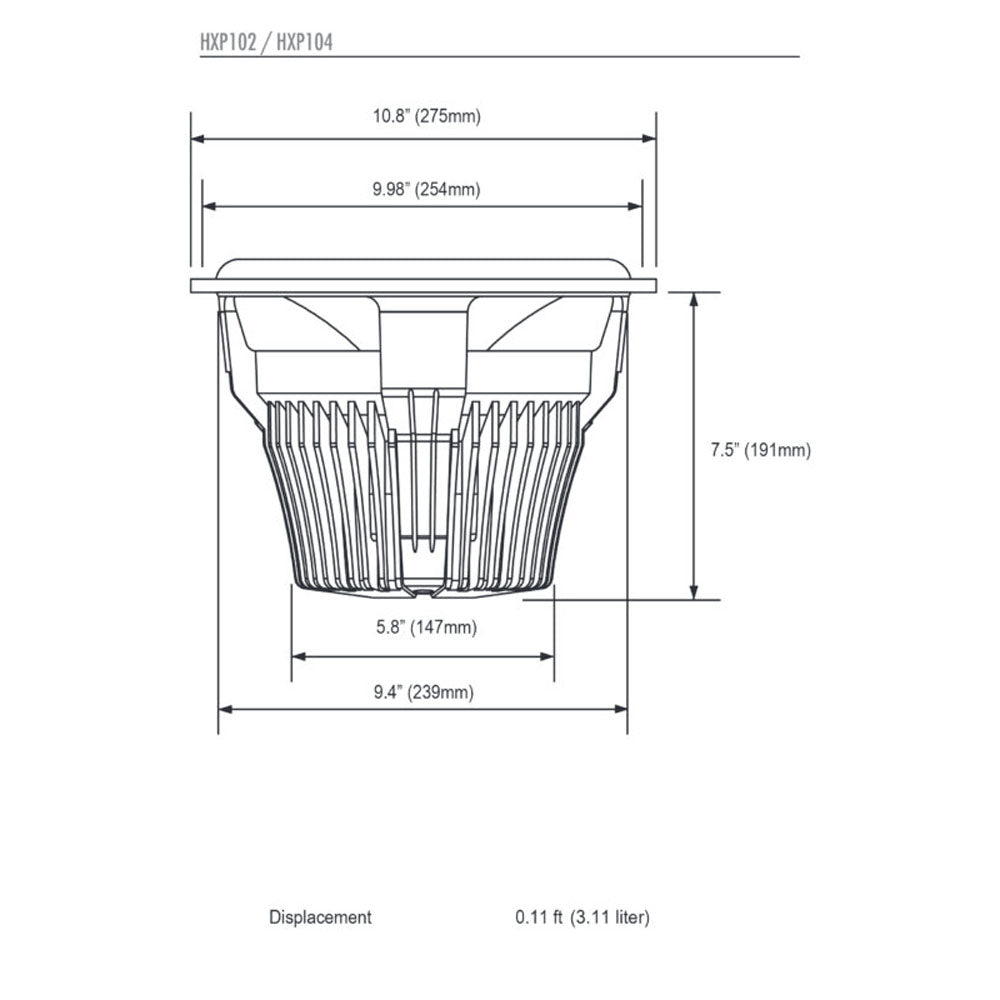

• Total Diameter: 10.8” (275mm)
• Mounting Diameter (inch/mm): 9.4" (239mm)
• Screw Hole Diameter: 9.98” (254mm)
• Mounting Depth: 7.5” (191mm)
• Magnet Diameter (E): 5.8” (147mm)
• Displacement (ft3/L): 0.11 ft (3.11 Liter)
• Grille: NO
